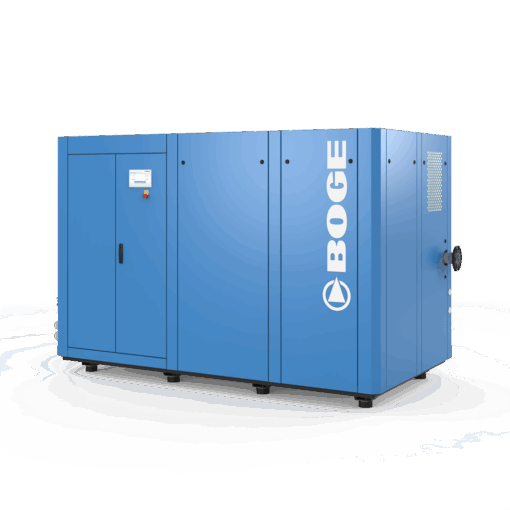

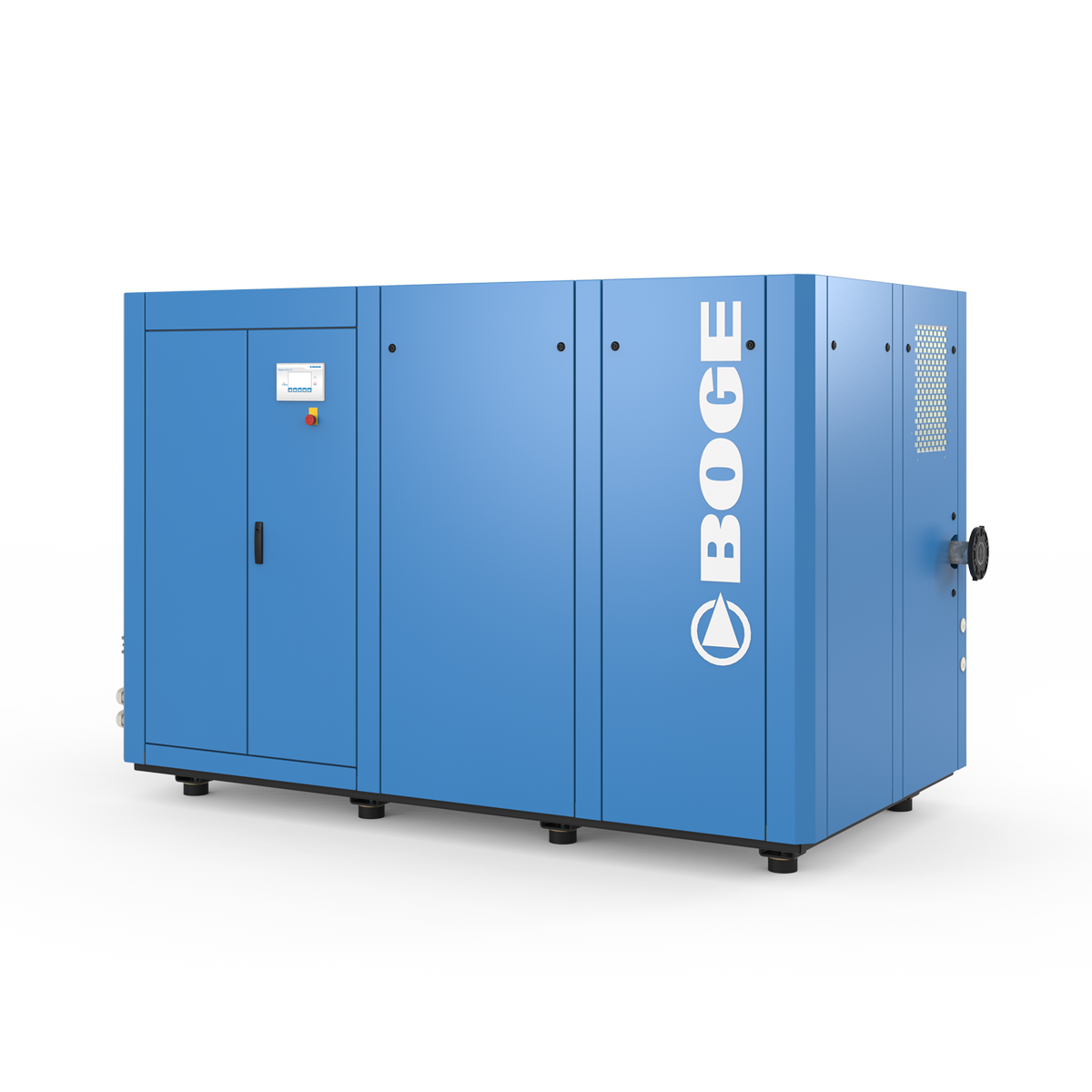

Boge S111-4LF
S111-4LF
Screw compressor, with oil-injection cooling, variable speed
Description
Screw Compressor S-4 LF
The innovative design concept of the S-4 series hasn’t just been revamped. It also represents major progress in terms of noise insulation, ease of maintenance and power consumption. BOGE’s latest generation of screw compressors impresses with surprisingly quiet noise levels, innovative separation technology, very simple maintenance and top efficiency values in their class.
Product – S111-4LF
Screw compressor, with oil-injection cooling, variable speed
advantages
- effective isolation from vibrations
- low-maintenance air-end with optimum efficiency
- maintenance-friendly design for easy access
- the quietest compressors in their class
Additional information
| Power (KW) | 110 |
|---|---|
| Power (HP) | 150 |
| Max Pressure (Bar) | 10, 13, 7.5 |
| Max Pressure (psig) | 109, 145, 189 |
| m3/min | 4.900, 5.300, 5.500 |
| CFM | 173, 187.2, 194.2 |
| m3/min (Max) | 15.400, 18.800, 21.500 |
| CFM (Max) | 544, 664, 759 |
| Dimensions (mm) | 2980 x 1620 x 1990 |
| Weight | 3550Kg |
