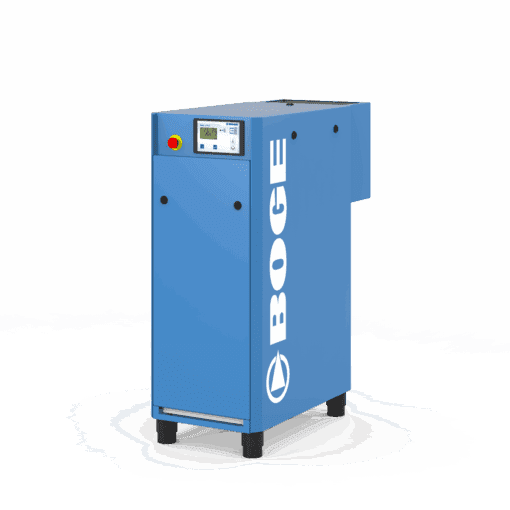

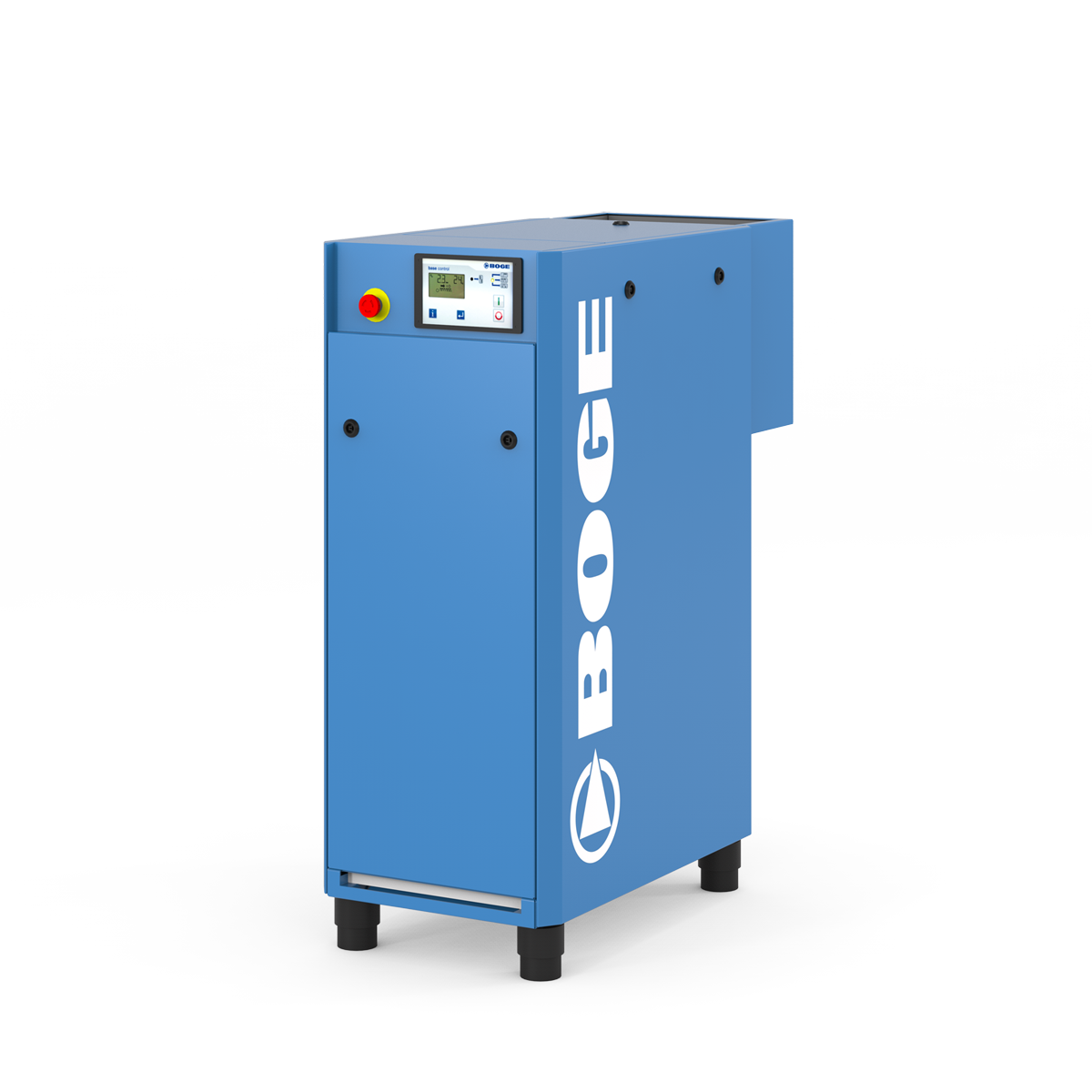

Boge C9D

C9D

Compressed air station with dryer, oil lubricated

sHOP SPARE PARTS NOW

Screw Compressor C D

Performance to the point: the C Series screw compressors are compact and operate reliably and safely, even with consistently large compressed air requirements. Other advantages include their high efficiency and long service life. The built-in CD dryers take up little extra space due to the integrated design, meaning shorter connections and therefore the lowest possible pressure losses. So for large delivery quantities, only a very small amount of energy is needed.

Product – C9D

Compressed air station with dryer, oil lubricated

advantages

  • compact design
  • refrigerant dryer included
  • extremely quiet
  • maximum efficiency
Power (KW)

7.5

Power (HP)

10

Max Pressure (Bar)

10, 13, 8

Max Pressure (psig)

115, 150, 190

m3/min

0.870, 1.060, 1.180

CFM

30.7, 37.4, 41.7

Dimensions (mm)

480 x 990 x 1235

Weight

235Kg
