Screw Compressor C D up to 7.5 kW
Performance to the point: the C Series screw compressors are compact and operate reliably and safely, even with consistently large compressed air requirements. Other advantages include their high efficiency and long service life. The built-in CD dryers take up little extra space due to the integrated design, meaning shorter connections and therefore the lowest possible pressure losses. So for large delivery quantities, only a very small amount of energy is needed.
Product – Boge C5D
advantages
- compact design
- refrigerant dryer included
- extremely quiet
- maximum efficiency

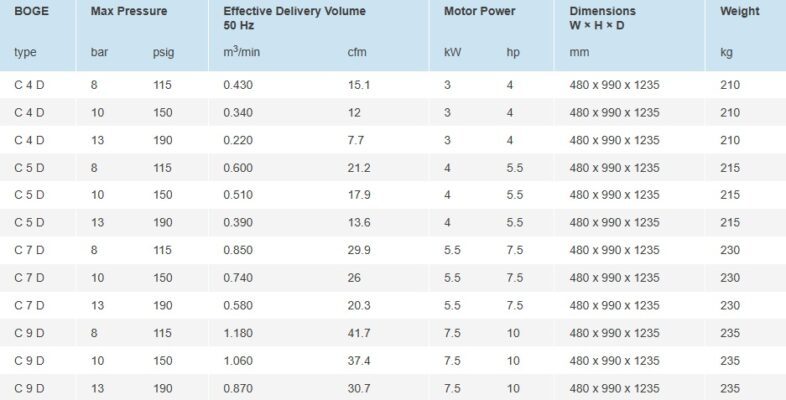

Power (KW) | 4 |
---|---|
Power (HP) | 5.5 |
Max Pressure (Bar) | 10, 13, 8 |
Max Pressure (psig) | 115, 150, 190 |
m3/min | 0.390, 0.510, 0.600 |
CFM | 13.6, 17.9, 21.2 |
Dimensions (mm) | 480 x 990 x 1235 |
Weight | 215Kg |
