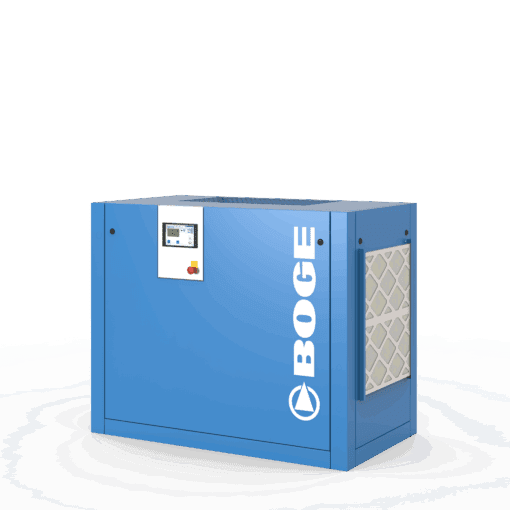

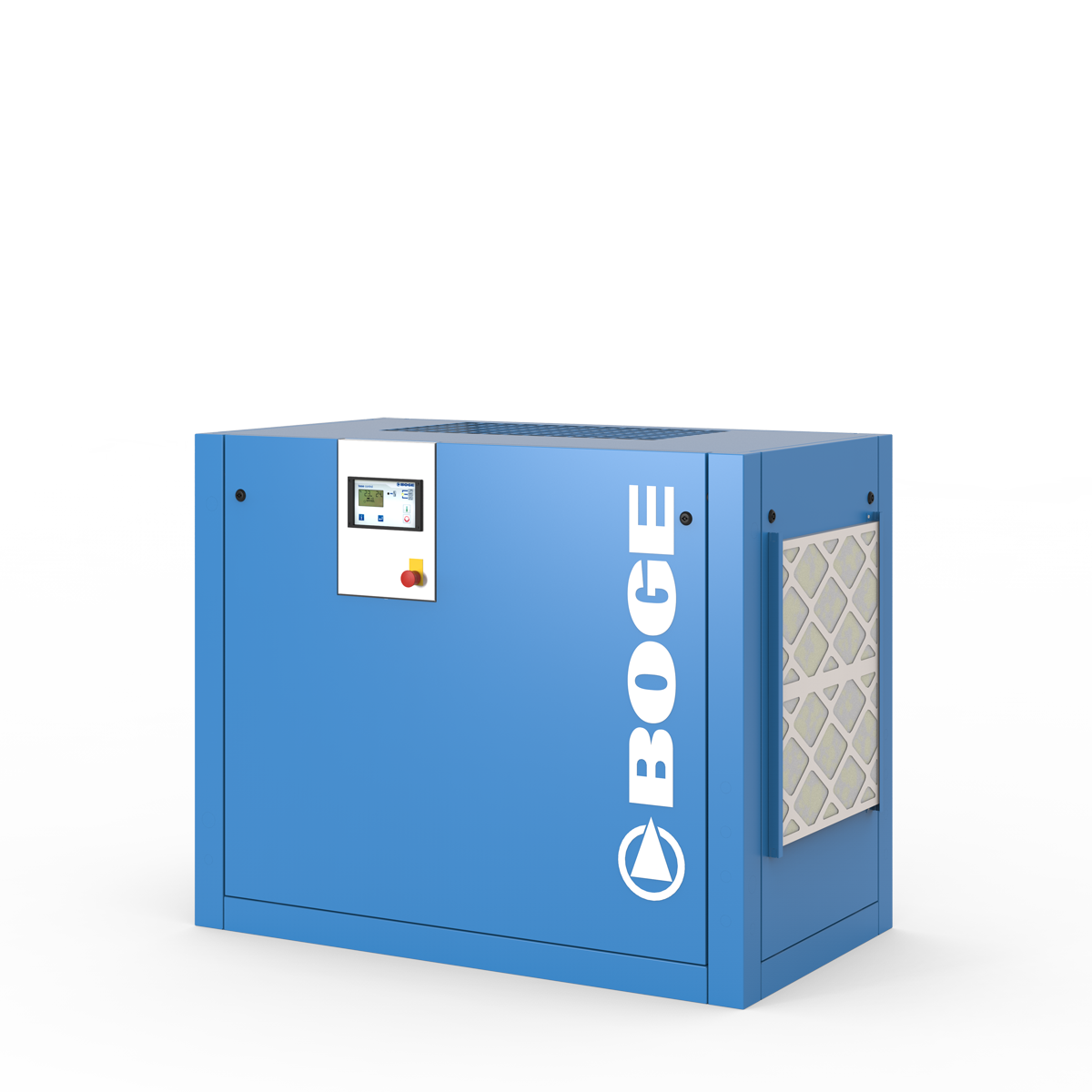

Boge C22-2

C22-2

Compact screw compressor, oil-lubricated

sHOP SPARE PARTS NOW

Screw Compressor C-2

Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. Thanks to their integrated design, they have a small footprint and generate compressed air with maximum efficiency. The latest generation of the C-series boasts increased efficiency, greater flexibility and perfect ergonomics as well as audibly lower noise emissions and easier maintenance. “Plug & work” is the order of the day!

Product – C22-2

Compact screw compressor, oil-lubricated

advantages

  • ergonomic control
  • integrated design
  • various options can be integrated e.g. heat recovery
  • very quiet operation
  • maximum efficiency
Power (KW)

22

Power (HP)

30

Max Pressure (Bar)

10, 13, 15, 7.5

Max Pressure (psig)

109, 145, 189, 217

m3/min

2.470, 2.740, 3.210, 3.640

CFM

113.4, 128.5, 87.2, 96.8

Dimensions (mm)

1610 x 915 x 1380

Weight

597
