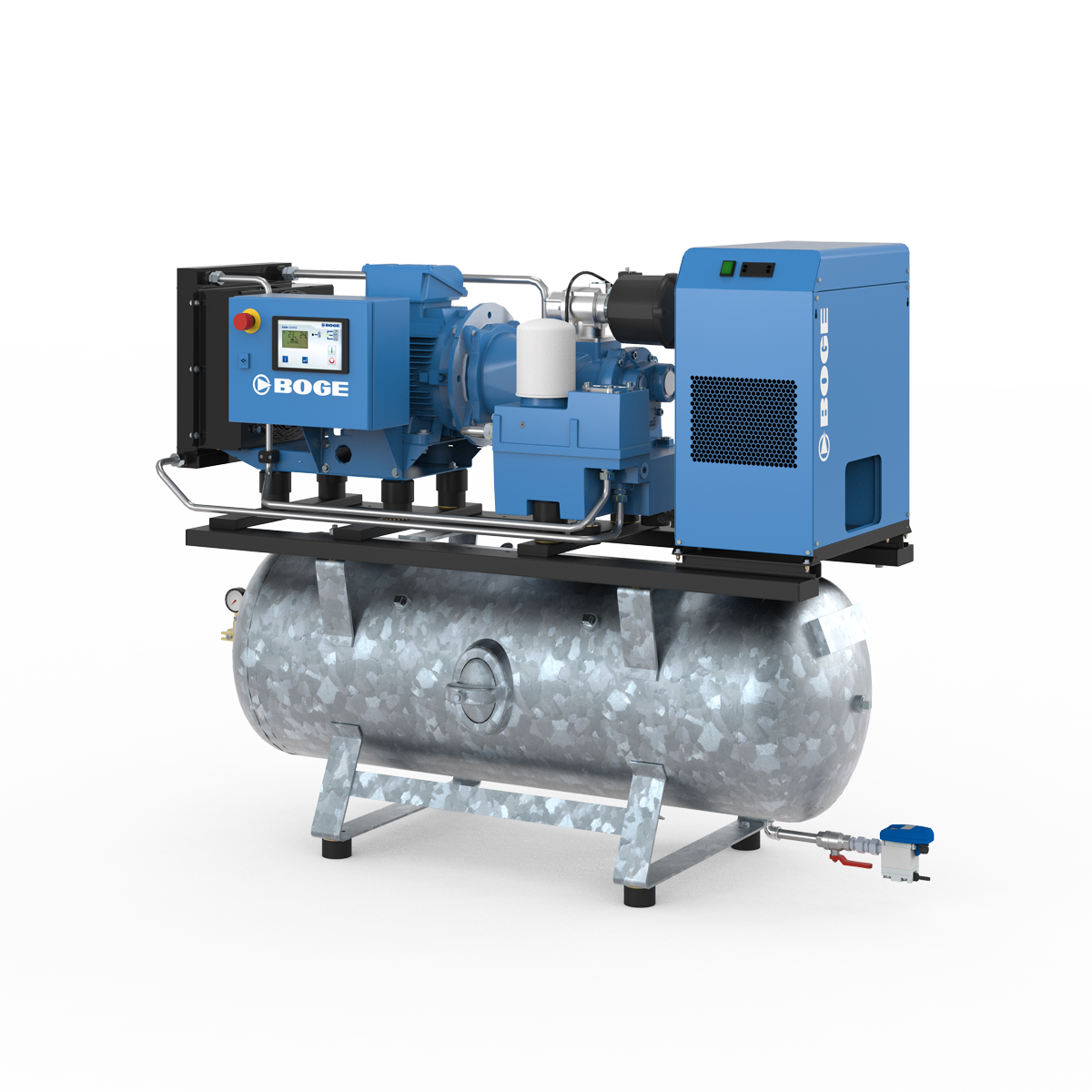

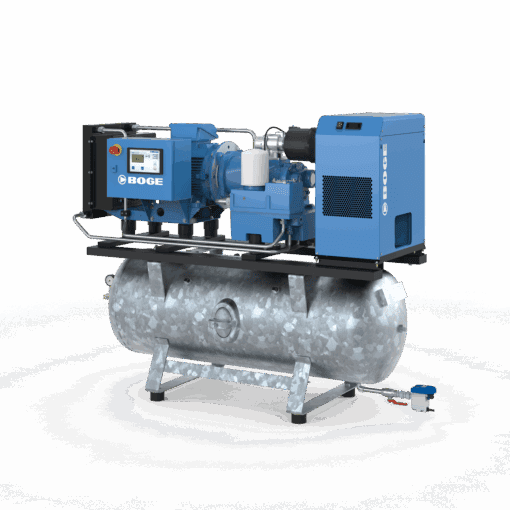

Boge C15LDR350
Screw compressor with refrigerant dryer mounted on a compressed air receiver, direct coupled, oil lubricated air receiver, direct coupled, oil lubricated
Description
In a class of its own: the compressors of the 15 kW C Series. The BOGE compact module is integrated, making long connections unnecessary. Integrated refrigerant dryers and compressed air receivers complete these screw compressors.
Product
Screw compressor with refrigerant dryer mounted on a compressed air receiver, direct coupled, oil lubricated air receiver, direct coupled, oil lubricated
advantages
- heat recovery can be integrated
- compact design
- refrigerant dryer included
- directly coupled
- with receiver
- extremely quiet
Additional information
| Power (KW) | 11 |
|---|---|
| Power (HP) | 15 |
| Max Pressure (Bar) | 10, 8 |
| Max Pressure (psig) | 115, 150 |
| m3/min | 1.740, 1.810 |
| CFM | 61.4, 63.9 |
| Dimensions (mm) | 1960 x 720 x 1365 |
| Weight | 380Kg |
