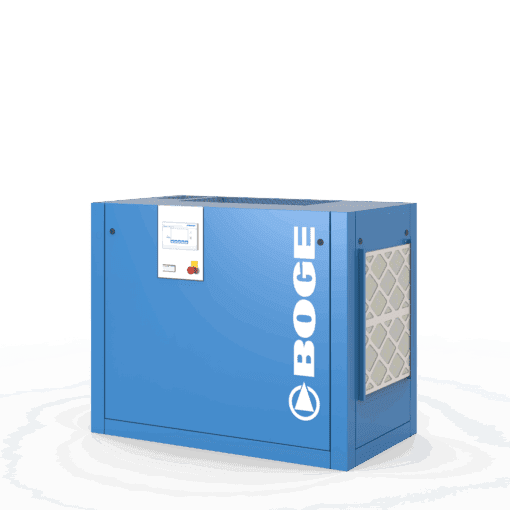

Boge C15-2LFD
C15-2LFD
Compact screw compressor, oil-lubricated, directly coupled, frequency-controlled, with refrigerant dryer
Description
Screw Compressor C-2 LFD
Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. The frequency control with direct coupling guarantees maximum efficiency and flexibly adjusts the free air delivery to the individual demand at any time. Soft starts and stops conserve the material and prolong the service life. The integrated refrigerant dryer allows for a complete compressed air station with minimal footprint and consistently high compressed air quality. “Plug & work” is the order of the day!
Product – C15-2LFD
Compact screw compressor, oil-lubricated, directly coupled, frequency-controlled, with refrigerant dryer
advantages
- ergonomic control
- integrated design
- extremely quiet
- heat recovery can be integrated
- refrigerant dryer included
- maximum efficiency
- frequency control
Additional information
| Power (KW) | 15 |
|---|---|
| Power (HP) | 20 |
| Max Pressure (Bar) | 10, 13, 15, 7.5 |
| Max Pressure (psig) | 109, 145, 189, 217 |
| m3/min | 0.480, 0.510, 0.520, 0.530 |
| CFM | 16.9, 18, 18.4, 18.7 |
| m3/min (Max) | 1.520, 1.890, 2.250, 2.630 |
| CFM (Max) | 53.7, 66.7, 79.5, 92.9 |
| Dimensions (mm) | 1610 x 915 x 1380 |
| Weight | 597Kg |
