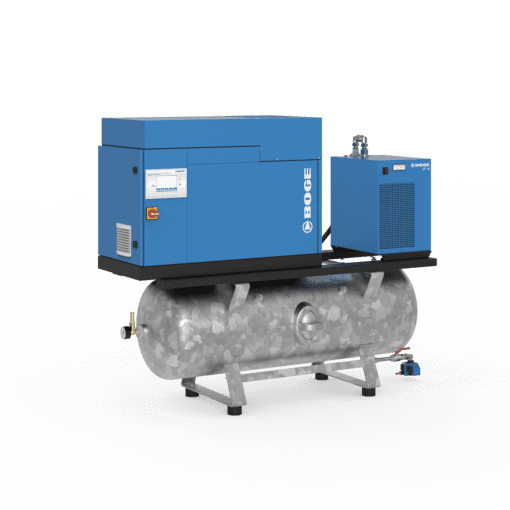

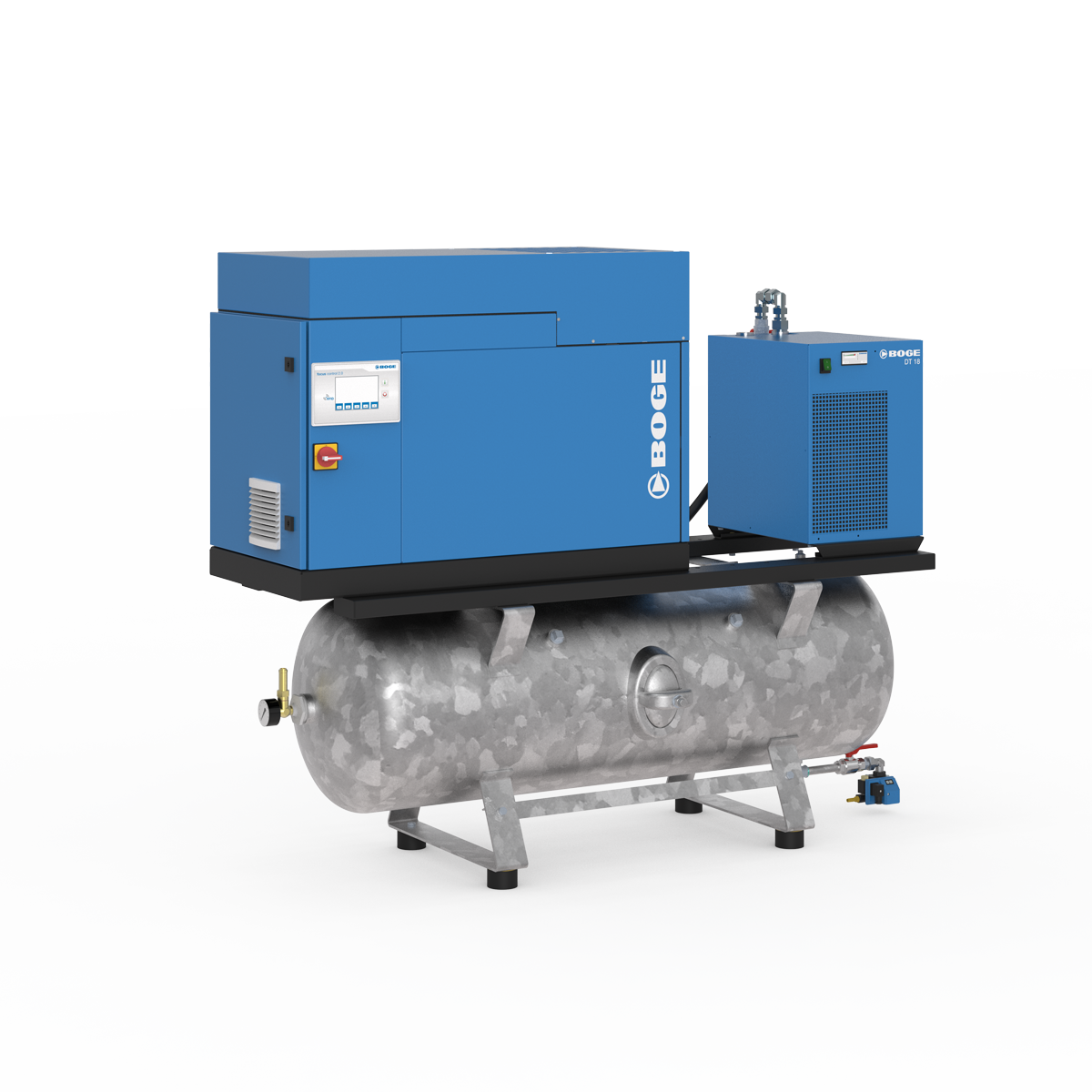

Boge C14PMDR
C14PMDR
Frequency-regulated screw compressor with permanent magnet motor on receiver with refrigerant dryer, directly coupled, oil-lubricated
Description
Screw compressors C PMDR
These compact, modular design screw compressors in the 5.5 to 11 kW performance range have a highly efficient permanent magnet motor which can combine improved performance levels with a pleasantly low noise level. All the models in this series are able to provide a considerably higher free air delivery for the same power consumption, and separating the airend and motor results in greater ease of maintenance.
Product – C14PMDR
Frequency-regulated screw compressor with permanent magnet motor on receiver with refrigerant dryer, directly coupled, oil-lubricated
advantages
- maximised free air delivery
- narrow footprint
- optimised for efficiency in partial load
- quiet operation
- integrated design
- very low maintenance
- directly coupled
- frequency control
Additional information
| Power (KW) | 11 |
|---|---|
| Power (HP) | 15 |
| Max Pressure (Bar) | 10, 13, 7.5 |
| Max Pressure (psig) | 109, 145, 189 |
| m3/min | 0.300, 0.320 |
| CFM | 10.6, 11.3 |
| m3/min (Max) | 1.280, 1.500, 1.740 |
| CFM (Max) | 45.2, 52.9, 61.4 |
| Dimensions (mm) | 1990 x 804 x 1404 |
| Weight | 409Kg |
