Screw Compressor C-2 R
Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. Thanks to their integrated design, they have a small footprint and generate compressed air with maximum efficiency. Optimally tailored to your requirements with compressed air receiver and ergonomic control – efficient, compact compressed air station ready for connection.

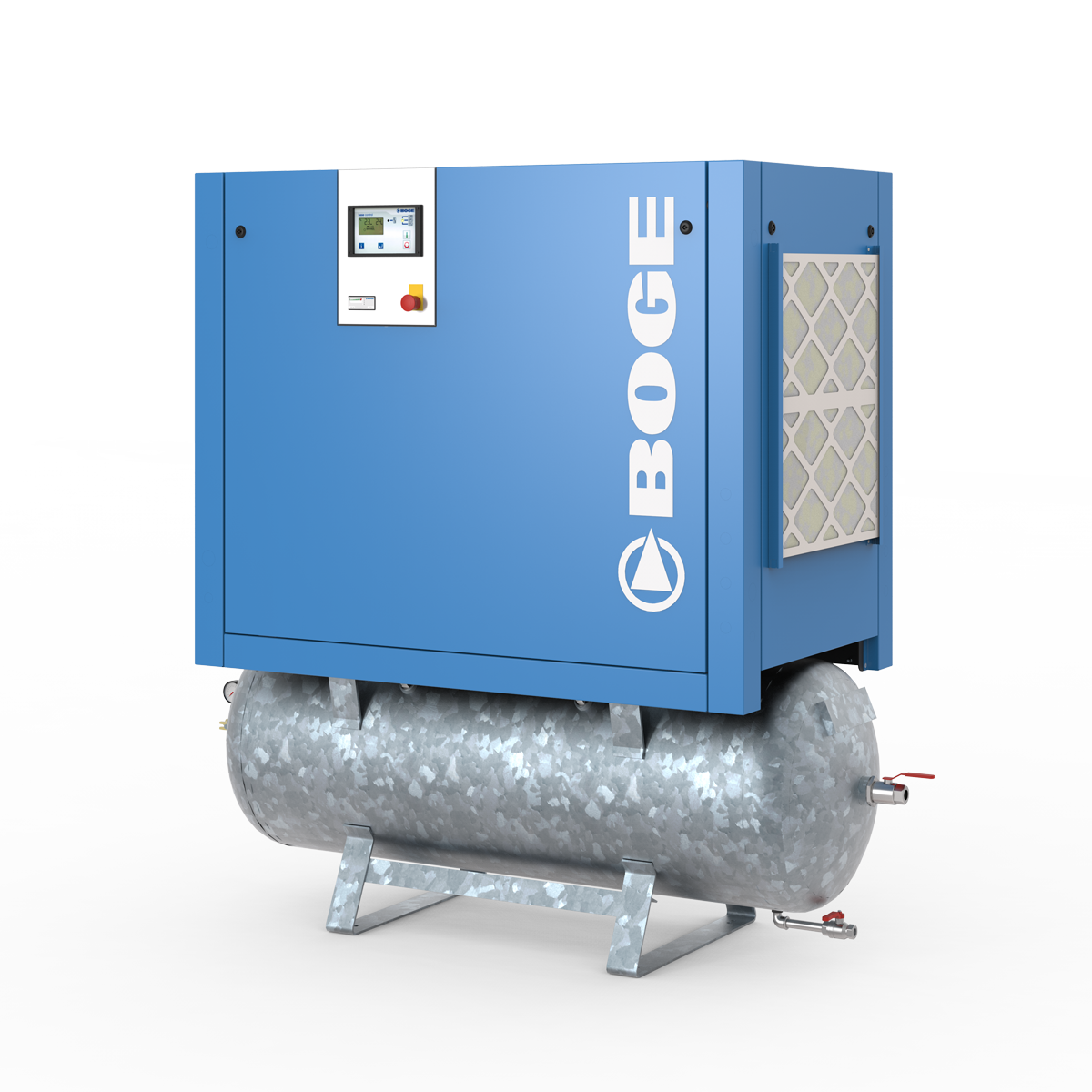

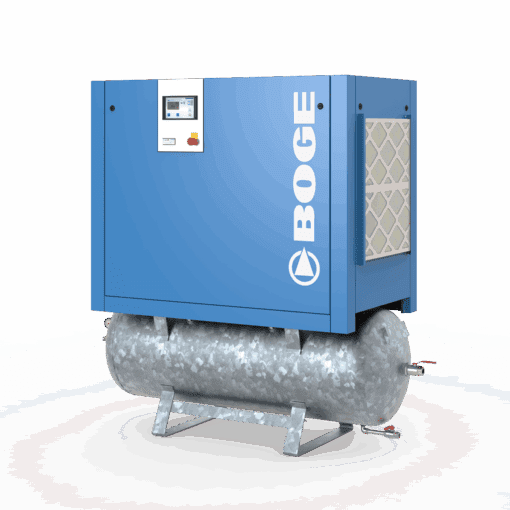

Product – C12-2R500
Compact screw compressor, oil-lubricated, on receiver
advantages
- ergonomic control
- integrated design
- extremely quiet
- various options can be integrated e.g. heat recovery
- with receiver
- maximum efficiency
Additional information
| Power (KW) | 11 |
|---|---|
| Power (HP) | 15 |
| Max Pressure (Bar) | 10, 13, 15, 7.5 |
| Max Pressure (psig) | 109, 145, 189, 217 |
| m3/min | 1.080, 1.310, 1.710, 1.970 |
| CFM | 38.1, 46.3, 60.4, 69.6 |
| Dimensions (mm) | 2036 x 915 x 1915 |
| Weight | 673Kg |
