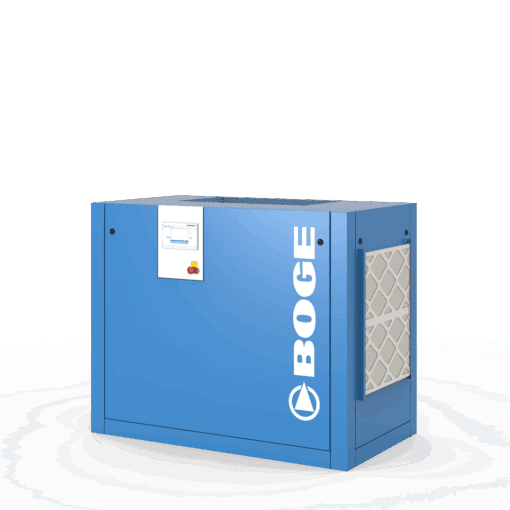

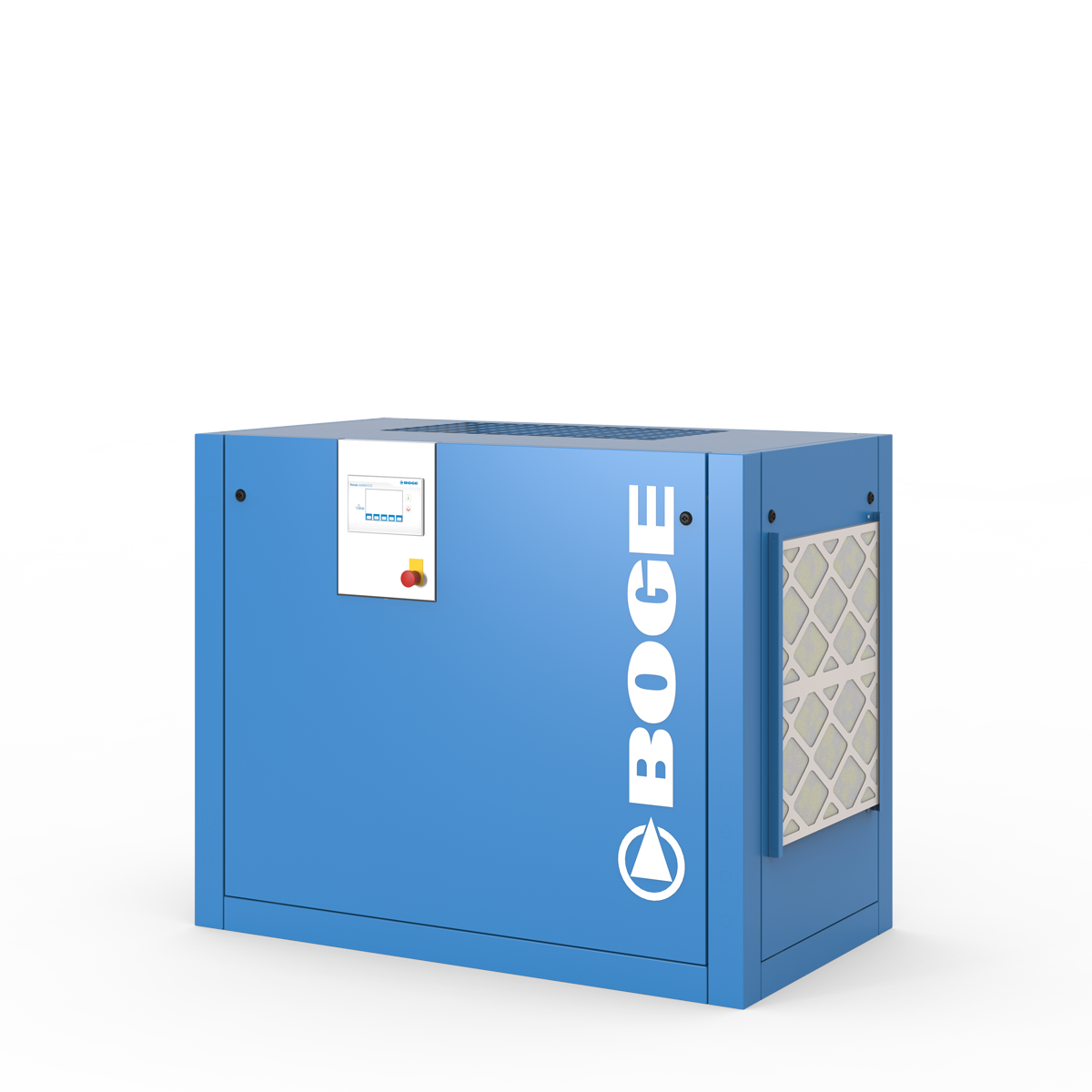

Boge C12-2LF

C12-2LF

Compact screw compressor, oil-lubricated, directly coupled, frequency-controlled

sHOP SPARE PARTS NOW

Screw Compressor C-2 LF

Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. The frequency control with direct coupling guarantees maximum efficiency and flexibly adjusts the free air delivery to the individual demand at any time. Soft starts and stops conserve the material and prolong the service life. The latest generation of the C-series boasts increased efficiency, greater flexibility and perfect ergonomics as well as audibly lower noise emissions and easier maintenance. “Plug & work” is the order of the day!

Product – C12-2LF

Compact screw compressor, oil-lubricated, directly coupled, frequency-controlled

advantages

  • ergonomic control
  • integrated design
  • extremely quiet
  • heat recovery can be integrated
  • directly coupled
  • maximum efficiency
  • frequency control
Power (KW)

11

Power (HP)

15

Max Pressure (Bar)

10, 13, 15, 7.5

Max Pressure (psig)

109, 145, 189, 217

m3/min

0.460, 0.510, 0.520, 0.530

CFM

16.2, 18, 18.4, 18.7

m3/min (Max)

1.150, 1.310, 1.710, 2.020

CFM (Max)

40.6, 46.3, 60.4, 71.3

Dimensions (mm)

1610 x 915 x 1380

Weight

557Kg
