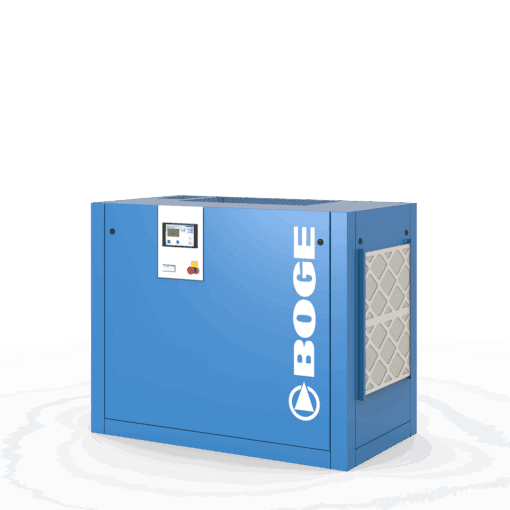

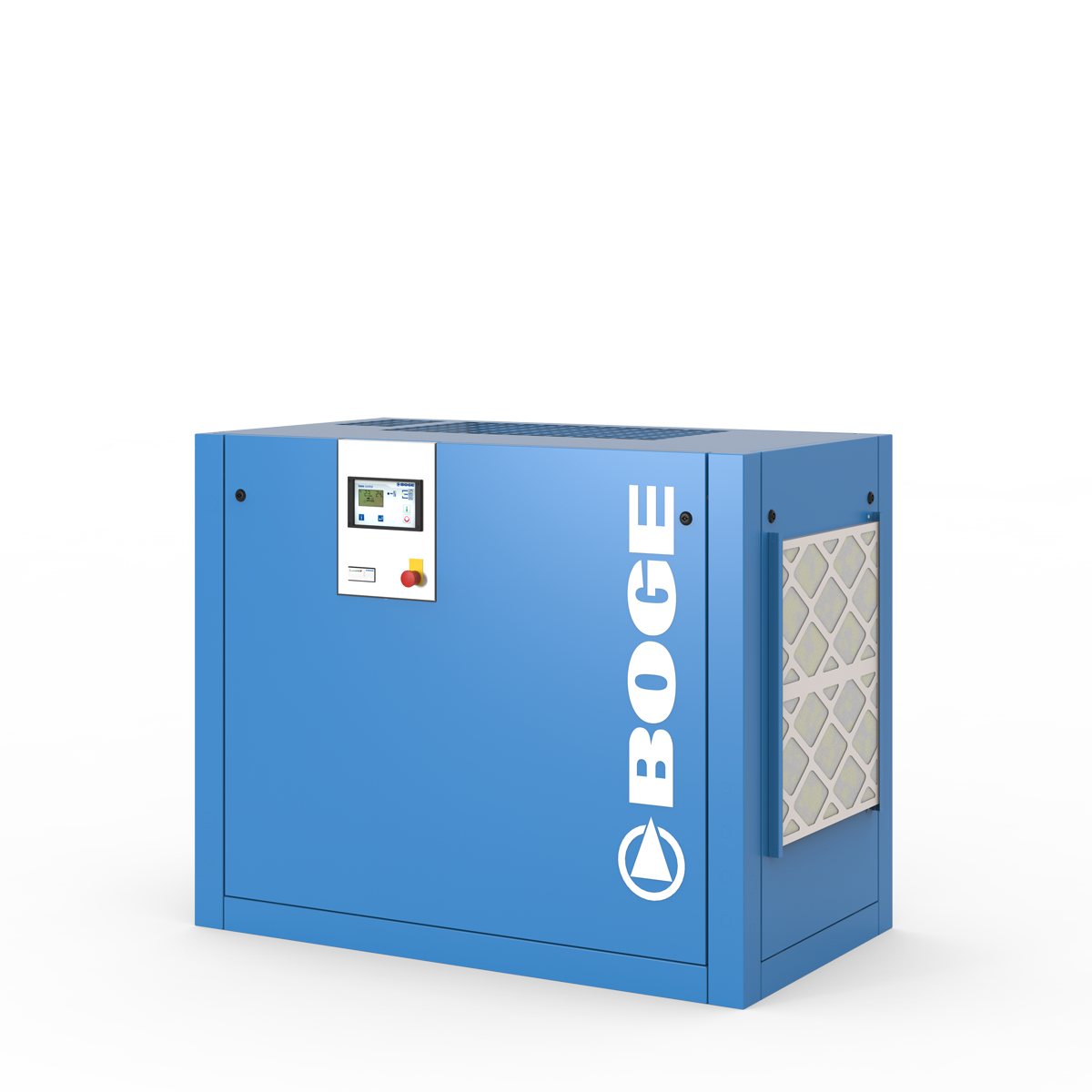

Boge C12-2D

C12-2D

Compact screw compressor, oil-lubricated, with refrigerant dryer

sHOP SPARE PARTS NOW

Screw Compressor C-2 D

Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. Thanks to their integrated design, they have a small footprint and generate compressed air with maximum efficiency. The integrated refrigerant dryer allows for a complete compressed air station with minimal footprint and consistently high compressed air quality. “Plug & work” is the order of the day!

Product – C12-2D

Compact screw compressor, oil-lubricated, with refrigerant dryer

advantages

  • ergonomic control
  • various options can be integrated e.g. heat recovery
  • compact design
  • refrigerant dryer included
  • extremely quiet
  • maximum efficiency
Power (KW)

11

Power (HP)

15

Max Pressure (Bar)

10, 13, 15, 7.5

Max Pressure (psig)

109, 145, 189, 217

m3/min

1.080, 1.310, 1.710, 1.970

CFM

38.1, 46.3, 60.4, 69.6

Dimensions (mm)

1610 x 915 x 1380

Weight

562Kg
