Showing all 3 results

Pulsation Dampeners

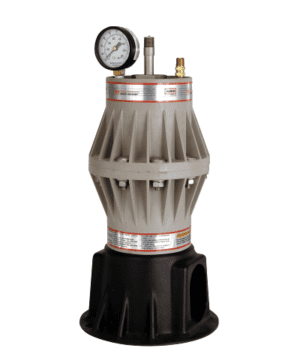

SB10X-X-X Shock Blocker

Pulsation Dampener Type Non-Metallic / Automatic Material See model description chart Weight Polypropylene 8.4 lbs (3.8 kgs) Conductive Acetal 8.6 lbs (3.9 kgs) Pure Kynar (PVDF) 9.0 lbs (4.1 kgs) Material Inlet/Outlets SB10X-AXX 1” - NPTF (Female) (Both are available) SB10X-BXX - 1” BSP (Female) Air Inlet Air Tamer is 3/8” NPTF (Male) (Standard) Maximum Air Inlet Pressure 100 PSIG (6.9 bar) Maximum Material Inlet Pressure 100 PSIG (6.9 bar) Maximum Temperature Limits Polypropylene 35° F - 100° F (+1.6° C - 37.7° C) Conductive Acetal 10° F - 180° F (-12° C - 82° C) Pure Kynar 10° F - 200° F (-12° C - 93° C) Maximum Fluid Volume 57 In.3 (931)

Pulsation Dampeners

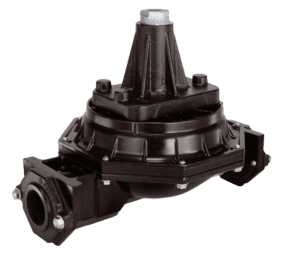

SB20X-X-X Shock Blocker

Pulsation Dampener Type Metallic / Automatic Material See model description chart Weight SB20X Aluminum (fluid cap) 29 lbs (13.2 kgs) SB20X Cast Iron (fluid cap) 70 lbs (31.8 kgs) SB20X Stainless St. (fluid cap) 71 lbs (32.2 kgs)   Material Inlet/Outlets SB20X-AXX-X 2” -11-1/2 NPTF -1 SB20X-BXX-X 2” -11 BS Rp   Air Inlet 3/4” - 14 NPT (female) Maximum Air Inlet Pressure 120 PSIG (8.3 bar) Maximum Material Inlet Pressure 120 PSIG (8.3 bar) Maximum Temperature Limits 200° F (93° C) Maximum Fluid Volume SB20X 159 in.3 (2.61 lit.)

Pulsation Dampeners

SB30X-X-X Shock Blocker

Pulsation Dampener Type Metallic / Automatic Material See model description chart Weight SB30X Aluminum (fluid cap) 41 lbs (18.6 kgs) SB30X Cast Iron (fluid cap) 94 lbs (42.6 kgs) SB30X Stainless St. (fluid cap) 96 lbs (43.5 kgs) Material Inlet/Outlets SB30X-AXX-X 3” -8 NPTF -1 SB30X-BXX-X 3” -11 BS Rp Air Inlet 3/4” - 14 NPT (female) Maximum Air Inlet Pressure 120 PSIG (8.3 bar) Maximum Material Inlet Pressure 120 PSIG (8.3 bar) Maximum Temperature Limits 200° F (93° C) Maximum Fluid Volume SB30X 509 in.3 (3.84 lit.)
